ХАРАКТЕРИСТИКА ВОЗДУШНЫХ СУДОВ

Фото судна

Тип судна

Полезная нагрузка

Макс. объём

Трюм
(Д х Ш х В)

Размер грузового люка
(Ш х В)

Boeing 757-200F	32 000 kg 70 530 lbs	238 m³ 8400 ft³	3327x353x213 cm 1311x139x84 in	133x86 in
Airbas 310-300F	39 000 kg 85 965 lbs	240 m³ 8472 ft³	3300x528x230cm 1299x188x94 in	358x256 cm 141x101 in
Boeing 707	40 000 kg 88 160 lbs	180 m³ 3 6356 ft³	3200x340x231 cm 1260134x91 in	340x230 cm 134x90 in
DC-8 54/55	41 000 kg 90 389 lbs	180 m³ 6356 ft³	3100x317x203cm 1220x125x80 in	355x215 cm 140x85 in
Ил-76	48 000 kg 105 792 lbs	180 m³ 36 356 ft³	1850x345x325 cm 787x136x128 in	345x340 cm 136x135 in
Ан-22	51 000 kg 112 400 lbs	650 m³ 22 954 ft³	2650x430x430 cm 1043x169x169 in	430x430 cm 169x169 in
Boeing 767-300F	54 000 kg 119 020 lbs	438 m³ 15 460 ft³	3980x442x250 cm 1531x174x98 in	340x254 cm 134x98 in
DC-8 71/73	48 000 kg 105 792 lbs	240 m³ 3 8472 ft³	3900x317x203 cm 1535x124x80 in	355x215 cm 139x84 in
DC-10 30	48 000 kg 105 792 lbs	240 m³ 38 472 ft³	3900x317x203 cm 1535x124x80 in	355x215 cm 139x84 in
Boeing 767-200	42 000 kg 92 568 lbs	367 m³ 12 955 ft³	3116x442x250 cm 1226x174x98 in	340x244 cm 134x98 in

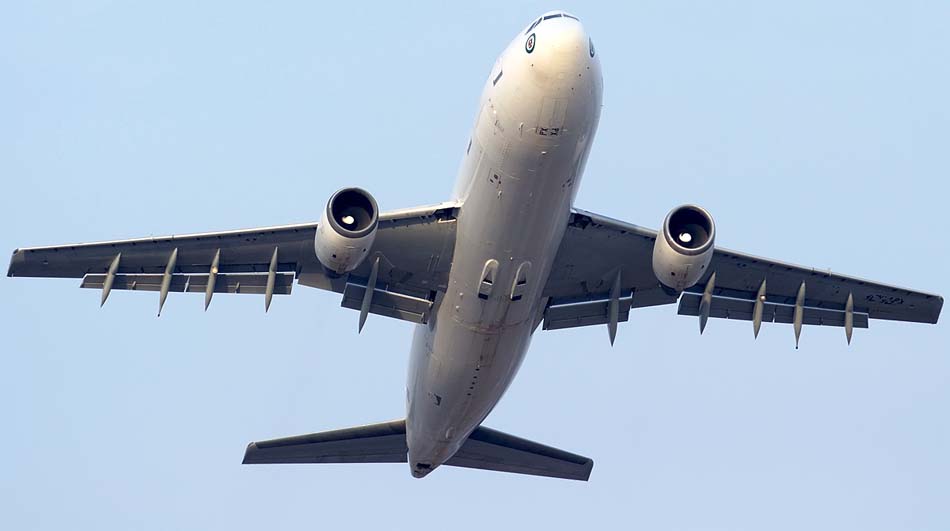

A 300 B4	43 500 kg 35 874 lbs	300 m³ 10 590 ft³	3550x477x245 cm 1398x188x96 in	358x256 cm 141x101 in
DC-8 62	45 000 kg 99 180 lbs	240 m³ 8475 ft³	3400x317x203 cm 1340x124x80 in	355x215 cm 140x85 in
L-1011	55 000 kg 121 220 lbs	420 m³ 14 826 ft³	3300x360x274 cm 1300x141x108 in	431x284 cm 170x112 in
MD-11	85 000 kg 187 340 lbs	600 m³ 21 188 ft³	4800x350x245 cm 1891x138x91 in	355x259 cm 132x91 in

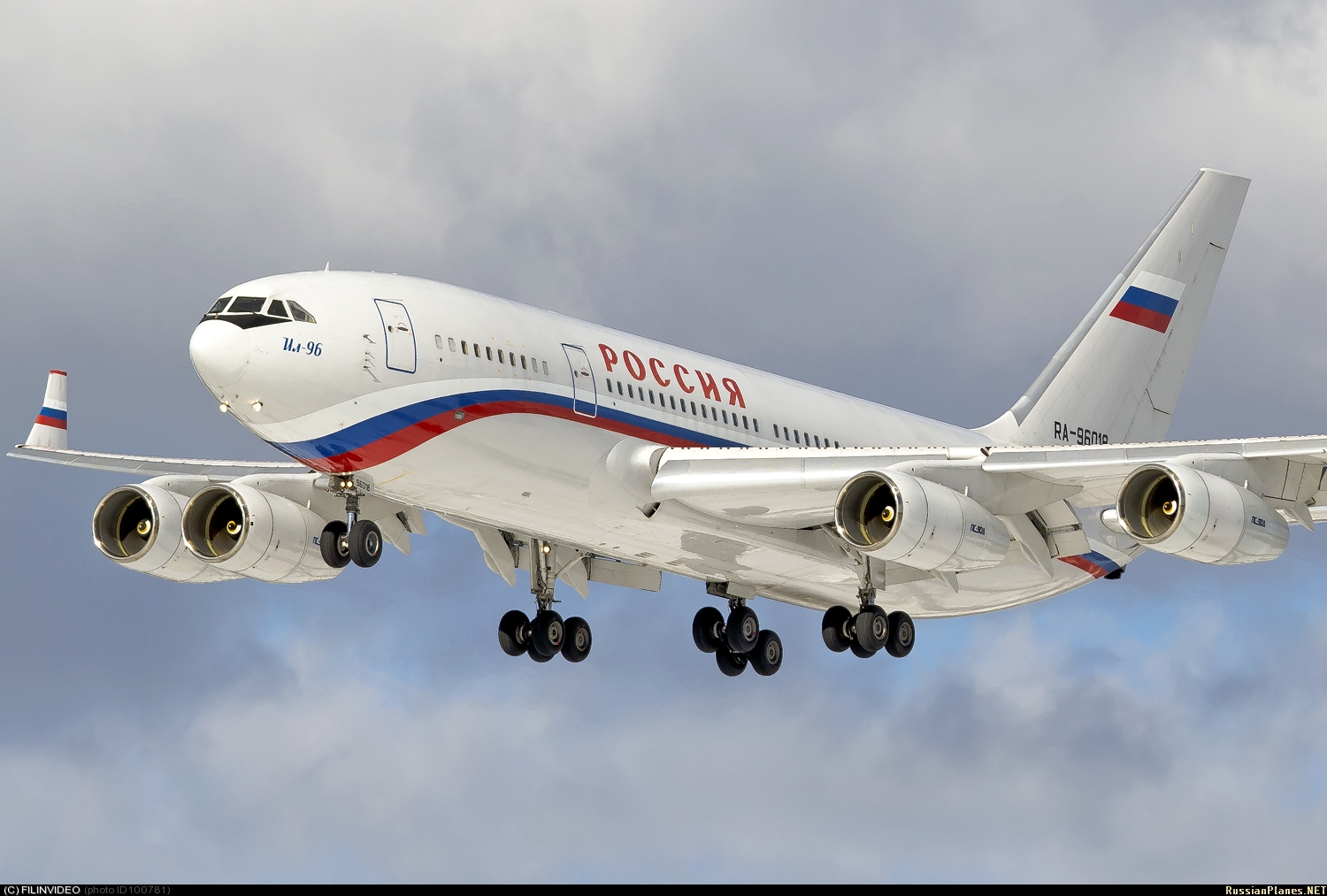

ИЛ-96	92 000 kg 202 825 lbs	580 m³ 20 482 ft³	4490x545x286 cm 1768x214x113 in	485x287 cm 191x113 in
Boeing 777-300f	103 000 kg 227 076 lbs	633 m³ 22 354 ft³	4413x582x315 cm 1737x229x124 in	362x305 cm 142x120 in
Boeing 747-200	111 500 kg 245 746 lbs	605 m³ 21 365 ft³	4800x486x304 cm 1890x191x119 in	ND 356x249 cm ND 140x98 in SD 340x312 cm SD 134x123 in
Boeing 747-400	120 000 kg 264 480 lbs	605 m³ 21 356 ft³	4800x486x304 cm 1890x191x119 in	ND 356x249 cm ND 140x98 in SD 340x312 cm SD 134x123 in
АН-124	120 000 kg 264 480 lbs	800 m³ 2 8251 ft³	3650x640x440 cm 1437x252x173 in	640x440 cm 252x173 in
АН-225	250 000 kg 551 000 lbs	100 m³ 38 846 ft³	4300x640x440 cm 1693x252x173 in	640x440 cm 252x173 in
МИ-8	4 000 kg 8 816 lbs	23 m³ 812 ft³	534x230x180 cm 210x90x71 in	234x182 cm 90x71 in
AS-332	4 000 kg 8 816 lbs	17 m³ 600 ft³	681x180x147 cm 268x71x61 in	130x135 cm 51x53 in
K-32	5 000 kg 11 020 lbs	7 m³ 3 883 ft³	452x130x132 cm 178x51x52 in	120x120 cm 47x47 in
МИ-26	20 000 kg 44 080 lbs	110 m³ 3 883 ft³	1200x320x310 cm 473x126x122 in	290x320 cm 126x122 in
